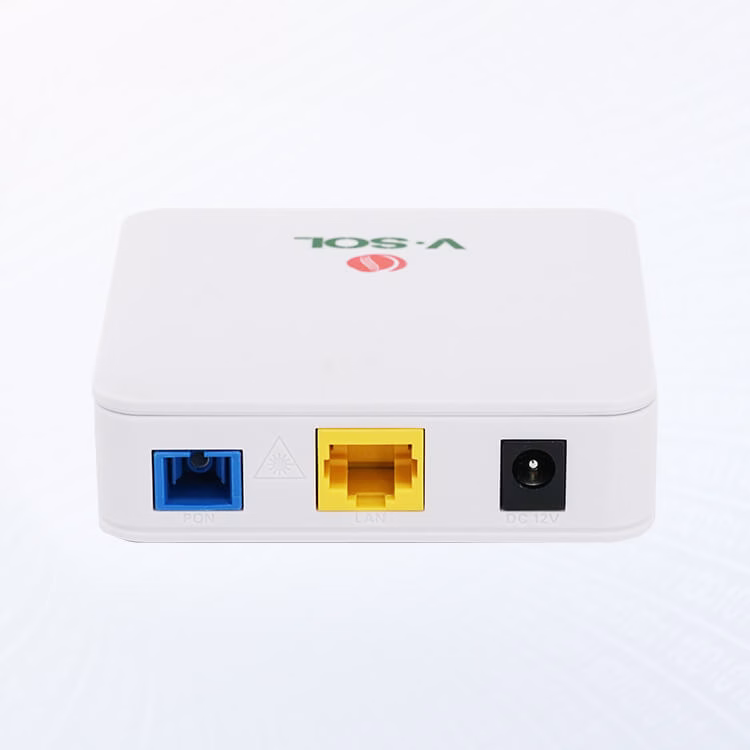

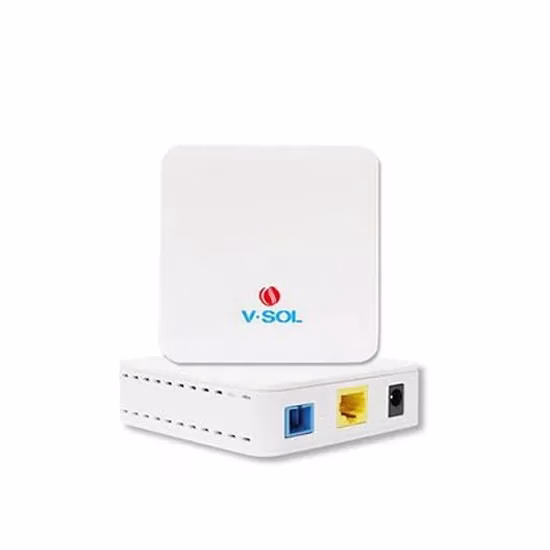

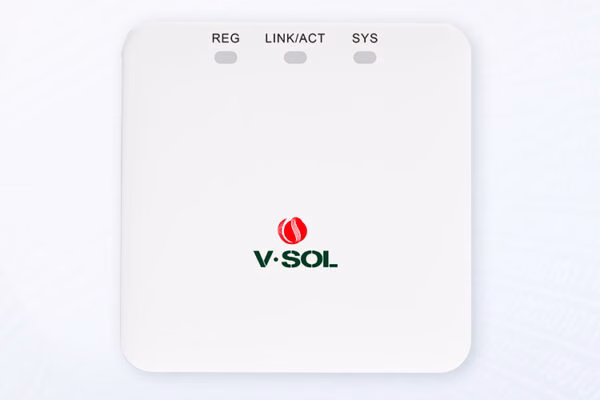

V-SOL V2801SG 1GE XPON Secure ONU

Name: V-SOL V2801SG 1GE XPON Secure ONU
Brand: VSOL
SKU: 10193
Price: 1350.00 BDT
Availability: InStock

-10%

View details

Current price is: 1,350.00৳ . Original price was: 1,500.00৳ .

Sold: 0

The V-SOL V2801SG 1GE XPON Secure ONU is a compact and reliable fiber-optic network terminal designed for FTTH broadband connections. It supports EPON and GPON dual mode, automatically connects with compatible OLTs, and includes 1 Gigabit Ethernet LAN port for high-speed wired networking. It also supports bridge and router modes, Rogue ONU detection, Dying Gasp protection, VLAN, QoS, IPv4, DHCP, PPPoE, NAT and multiple management options.

Key Features:

XPON Dual Mode: EPON + GPON
1 x Gigabit Ethernet RJ45 LAN port
20KM transmission distance
Bridge Mode & Router Mode
Rogue ONU detection
Hardware Dying Gasp
VLAN, QoS and Multicast support
IPv4, DHCP, PPPoE, Static IP and NAT
WEB, TELNET, CLI, OMCI and OAM management
Compact 82 × 82 × 25 mm design
Low power consumption up to 4W

Looking for the latest V-SOL ONU price in Bangladesh? The V2801SG is a strong choice for reliable FTTH fiber broadband connectivity.

Add to cart

এখন কিনুন

Category: ONU Tags: 1GE ONU EPON ONU Fiber ONU FTTH ONU Gigabit ONU GPON ONU ONU price in BD Secure ONU V-SOL ONU V-SOL ONU price in Bangladesh V-SOL V2801SG V2801SG VSOL ONU XPON ONU Brand: VSOL

Product Description

The V-SOL V2801SG 1GE XPON Secure ONU is designed for secure and stable fiber broadband access in homes, offices and small business networks. It supports XPON dual mode, allowing automatic access to both EPON and GPON OLT systems, which makes it flexible for different ISP network environments.

For users searching for a compact, affordable and secure VSOL ONU, the V2801SG offers a strong combination of Gigabit LAN connectivity, network protection and advanced management features.

XPON Dual Mode Support

The V2801SG supports both EPON PX20+ and GPON Class B+ through a single XPON port. It can automatically access compatible EPON or GPON OLT equipment, making deployment easier for broadband networks and FTTH installations.

This dual-mode capability makes the ONU suitable for ISPs, network installers and users who require broader compatibility.

1 Gigabit Ethernet LAN Port

The V-SOL V2801SG includes 1 x GE auto-negotiation RJ45 LAN port, enabling Gigabit wired connectivity to a router, computer, switch or other networking device.

This makes it suitable for high-speed broadband plans where Fast Ethernet may become a bottleneck.

Secure Network Protection

One of the key strengths of this VSOL ONU is its security-focused design. It supports Rogue ONU detection and Hardware Dying Gasp, helping network operators identify abnormal devices and maintain a more reliable PON network.

The ONU also supports firewall functions including:

DDoS protection
ACL-based filtering
MAC filtering
URL filtering

Bridge and Router Mode

The V2801SG supports both Bridging Mode and Routing Mode. This gives users and network administrators more flexibility depending on the installation requirement.

In routing mode, it supports:

VLAN and QoS Support

The V-SOL V2801SG supports multiple VLAN modes including tag, transparent, trunk and 1:1 translation. It also supports up to four QoS queues with SP and WRR scheduling, along with IEEE 802.1P support.

These features are especially useful in managed ISP and enterprise environments.

Multicast and IPTV Support

For multicast services, the ONU supports IGMP v1/v2 and IGMP Snooping, with support for multicast VLANs and groups.

This makes it suitable for IPTV and other multicast-based network services where supported by the ISP.

Easy Network Management

The device supports multiple management methods including:

CTC OAM 2.0 / 2.1
ITU-T G.984.x OMCI
WEB
TELNET
CLI

This allows both end users and network administrators to configure and manage the device efficiently.

Long-Distance Fiber Transmission

The V2801SG supports a transmission distance of up to 20KM. It uses TX 1310nm and RX 1490nm wavelengths with an SC/UPC fiber connector.

This makes it suitable for standard FTTH and broadband fiber deployments.

Compact and Energy Efficient Design

The device measures approximately 82 × 82 × 25 mm, weighs around 85g, and consumes no more than 4W of power. It uses an external 12V 0.5A power adapter.

Its compact form factor makes installation easy even in limited spaces.

V-SOL ONU Price in Bangladesh

If you are searching for the V-SOL ONU price in Bangladesh, the V2801SG is available from multiple local sellers. Current market listings place it roughly around ৳1,162 to ৳1,300, depending on seller, stock and warranty.

For the latest price and availability, check the current selling price at Above IT before ordering.

Why Buy V-SOL V2801SG from Above IT?

Choose the V-SOL V2801SG 1GE XPON Secure ONU if you need a compact and reliable ONU with Gigabit Ethernet, XPON dual-mode compatibility and advanced network security features.

Order online from Above IT for convenient delivery across Bangladesh.

Technical Specifications

Specification	Details
Brand	V-SOL
Model	V2801SG
Product Type	1GE XPON Secure ONU
PON Mode	EPON / GPON Dual Mode
PON Interface	1 x XPON
EPON Standard	PX20+
GPON Standard	Class B+
Fiber Connector	SC/UPC
LAN Port	1 x Gigabit Ethernet RJ45
Transmission Distance	Up to 20KM
TX Wavelength	1310nm
RX Wavelength	1490nm
TX Optical Power	0 to +4dBm
RX Sensitivity	-27dBm
Operation Mode	Bridge / Router
Security	Rogue ONU Detection, Dying Gasp
Firewall	DDoS, ACL, MAC and URL Filtering
Network Support	IPv4, DHCP, PPPoE, Static IP, NAT
VLAN	Tag, Transparent, Trunk, 1:1 Translation
QoS	4 Queues, SP, WRR, 802.1P
Multicast	IGMP v1/v2, Snooping
Management	OAM, OMCI, WEB, TELNET, CLI
Power Adapter	DC 12V, 0.5A
Power Consumption	≤4W
Dimension	82 × 82 × 25 mm
Weight	85g
Operating Temperature	-10°C to +55°C
